LiteStick Code 3 LED Hands Free Clip-On Light

Product Manual

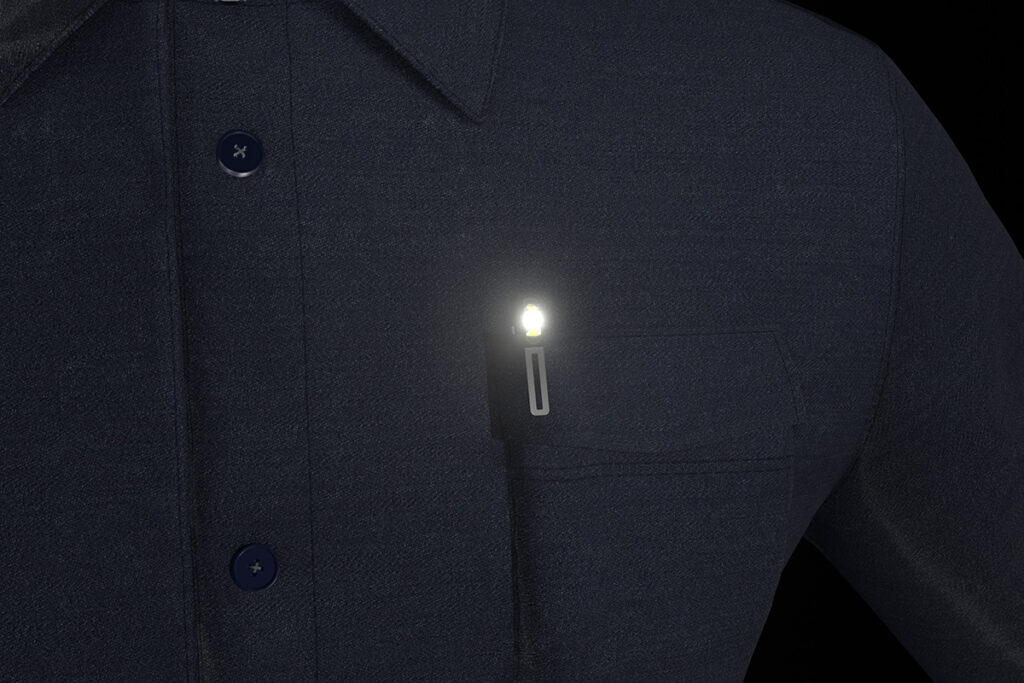

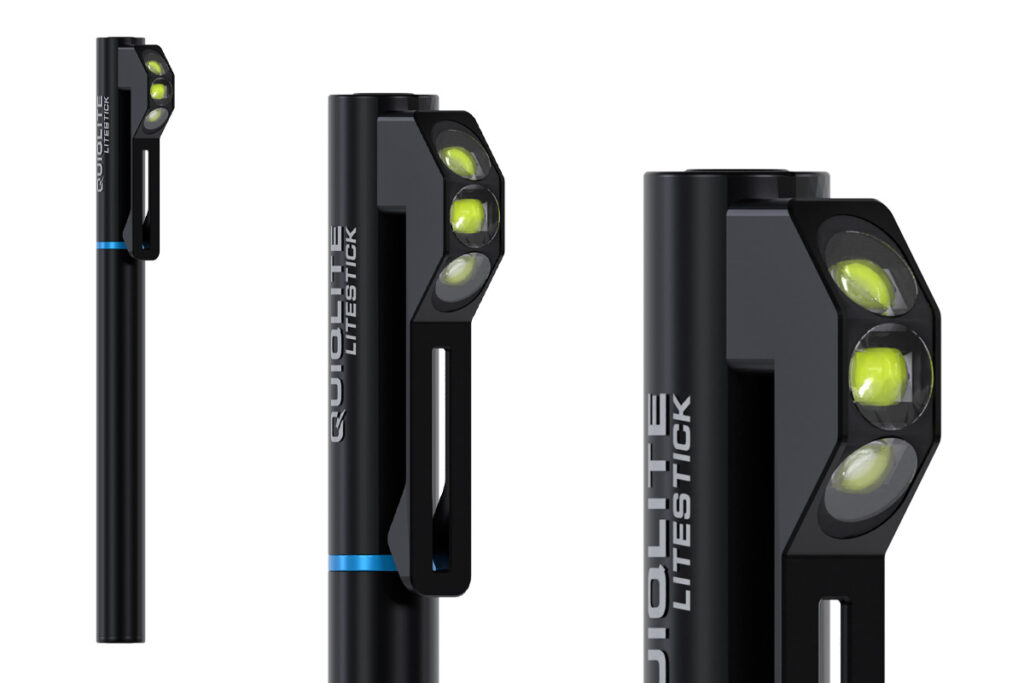

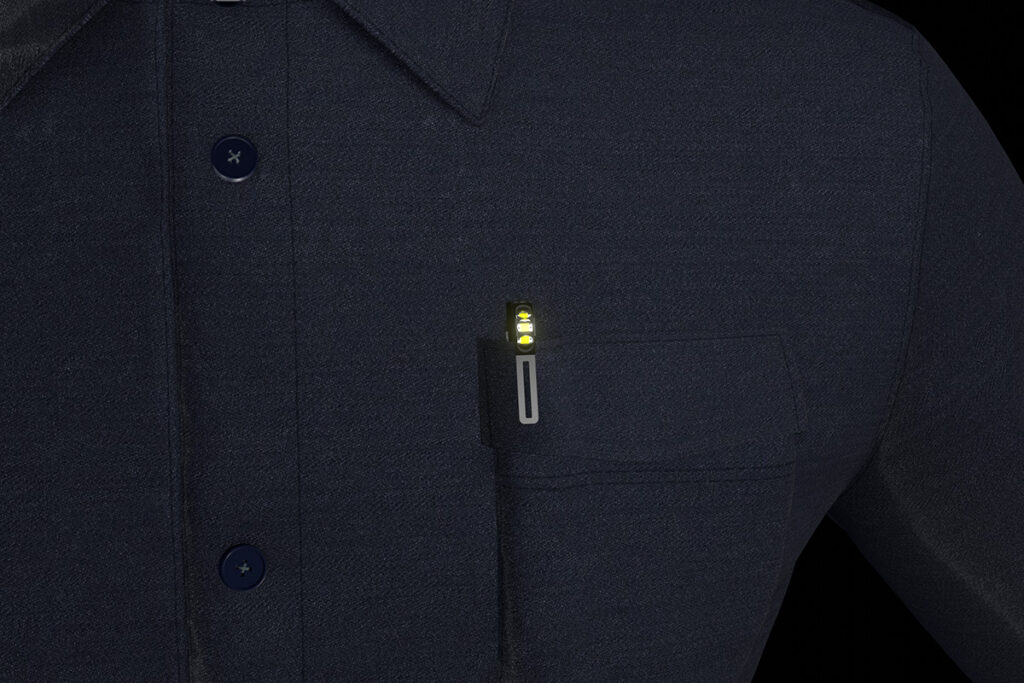

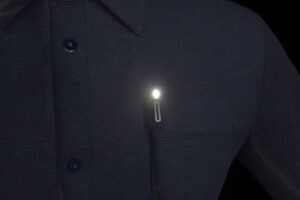

LiteStick is the newest addition to our line of hands-free USB Rechargeable LED flashlights designed for officer safety. LiteStick securely attaches to your uniform shirt pocket producing from 5 up to 200 lumens of light on demand. LiteStick incorporates 3 independent programable multi-functional LEDs with Safety Strobe, allowing you the freedom to choose your perfect lighting angles of 145°, 90° and 45°.  Best of all LiteStick is easy to use. Simply clip LiteStick into your shirt pocket pen slot. Push the on/off multi-function button to activate your hands-free light source. Manufactured from aircraft aluminum, LiteStick will provide a lifetime of service!

Charge battery to 100% before first use.

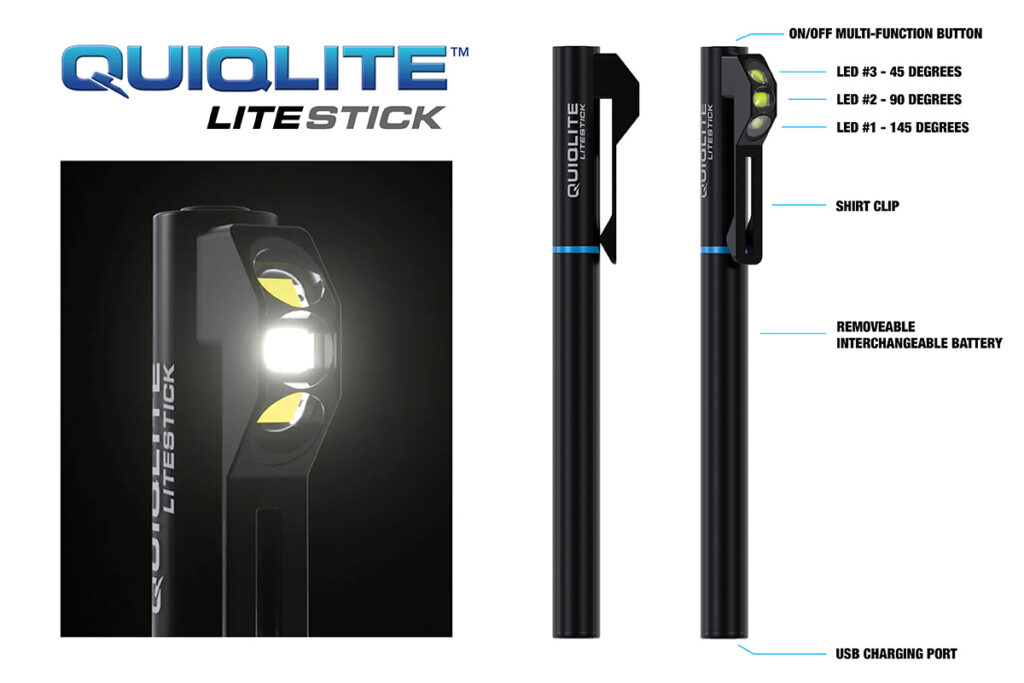

PRODUCT FEATURES:

• Hands Free LED Light
• 3 Independent LEDs: Red LED #1 / 45°, White LED #2 / 90°, Blue LED #3 / 145°
• Aluminum Housing
• USB Rechargeable (Type-C)
• 5-200 Lumens
• 13 Modes
• Removable Interchangeable Lithium-Ion Battery
• Programmable
• Safety Strobe
• 20 Min Auto Off Timer
• IPX4 Weather Resistant Housing
• Limited Lifetime Warranty
• CE Certified

INCLUDED:

• QuiqLite Code3 LiteStick
• USB Charging Cord (Type-C)
• User Manual

SPECIFICATIONS:

• Length 130mm / 5.11″
• Diameter: 10mm / 0.41″
• Battery: Lithium USB Rechargeable 360mAh
• Housing: Aluminum
• Lumens Per LED: 5 up to 200
• Weight: 0.8 oz. (unpackaged)

LED FUNCTION & PROGRAMING GUIDE

LED1 RED @ 45°

• Push the on/off button to activate LED#1 RED
• Wait 1 second to adjust lumen brightness.
• After 1 second, double press the on/off button to boost brightness from Low, Medium, to High.
• Wait 2 seconds to lock your lumen/brightness setting.
• Push the button again to turn off RED LED#1.

LED2 WHITE @ 90°

• Push the on/off button two (2) times within 1 second to toggle past LED#1.
• LED#2 will activate White
• Wait 1 second to adjust lumen brightness.
• After 1 second, double press the on/off button to boost brightness from 5, 50, 100, to 200 lumens.
• Wait 2 seconds to lock your lumen/brightness setting.
• Push the button again to turn off LED#2.

LED3 BLUE @ 145°

• Push the on/off button three (3) times within 1 second to toggle past LED#1 and LED#2
• LED#3 will activate BLUE
• Wait 1 second to adjust lumen brightness.
• After 1 second, double press the on/off button twice to increase brightness from Low, Medium, to High.
• Wait 2 seconds to lock your lumen/brightness setting.
• Push the button again to turn off LED#3.

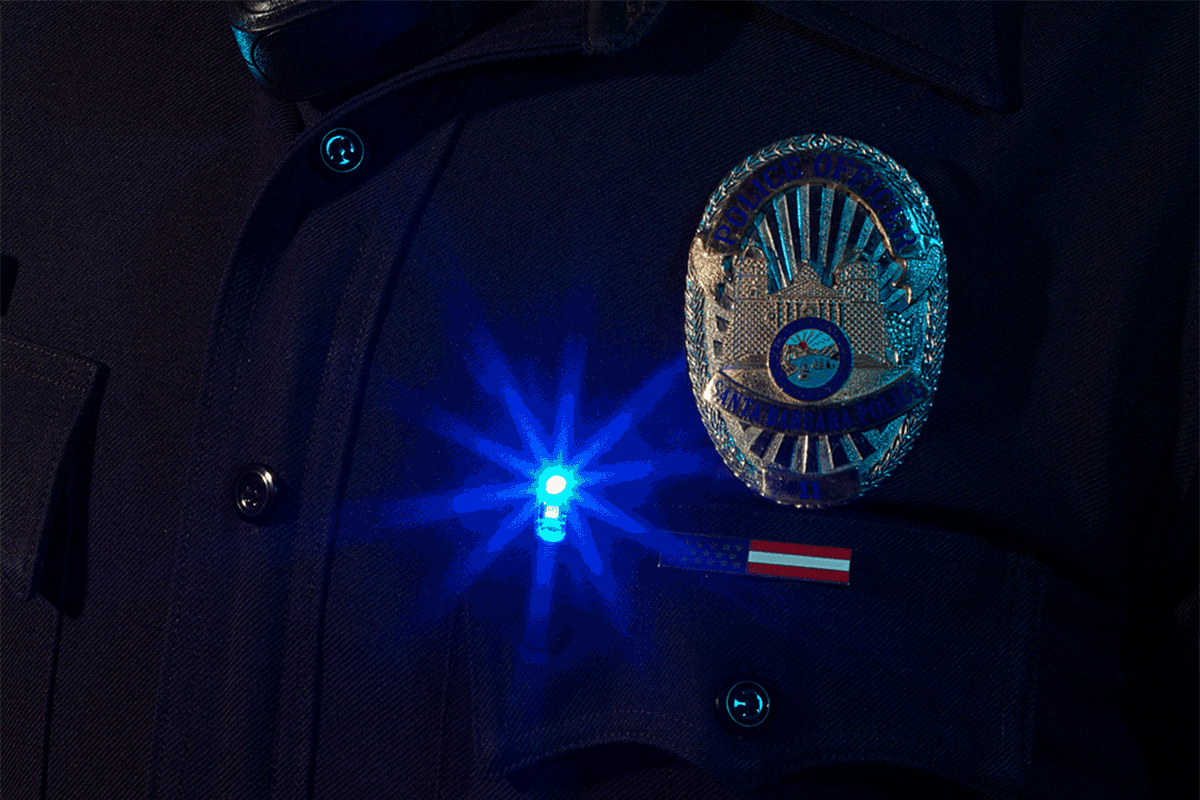

SAFETY STROBE:

• At any time, push and hold the on/off button for 3 seconds to activate the Safety Strobe Mode.  All 3 LEDs RED/WHITE/BLUE flashing in a random pattern.
• Push the button again to turn off the Safety Strobe.

BOOST MODE:

• Hold the on/off button for 3 seconds to activate the Safety Strobe Mode
• Continue to hold button down and wait for all three LEDs to flash in unison to activate all LEDs at full power

LOW BATTERY WARNING:

• LiteStick is equipped with a low battery warning function. LED#2 will flash twice every 10 minutes when your battery is less than 10% capacity letting you know it needs to be recharged or switched out.

CHARGING:

Charge battery to 100% before first use.

• LiteStick uses a USB Type C charging port located on the bottom of the product. Insert the supplied Type C charging adaptor into the bottom of LiteStick and plug directly into a USB Type A port with a minimum output of 5 volts. The small red charging LED indicator next to the Type C charging port will illuminate letting you know the charging cycle has begun.
• CHARGING – Red LED is steady
  CHARGED – Red LED is off
  (Charge time is approximately 2 hours)

BATTERY RUN TIMES:

INTERCHANGEABLE BATTERY:

• LiteStick is equipped with a removable interchangeable Lithium battery.
• Simply unscrew the battery (counterclockwise) from the light head. Additional batteries can be purchased separately.
